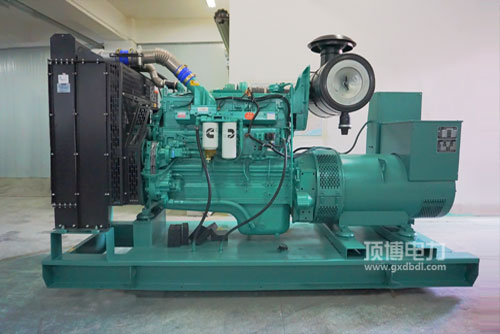

224-310KW广西顶博发电机组制造:康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯并网发电用起动因汽油生活性好: 为先进的汽油控住平台，才有的STC、ESTC 分类控住平台，特种开发的活塞环顶部然烧室，高压变压器压喷射汽油，更加加以雾化吸入，然烧更加加以。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯发电厂用发起机瞬态安全性能出色: 无极限的发起机总布局设计方案，互相配合康明斯与众不同的EFC系統，的控制可靠性强，精密度就越高，没有响应时长快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯风能发电用起行为升瓦数高: 综合设计的概念紧凑型.自己的外观布置准备合情合理，作业稳步。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷形号 QSNT. QSK19. QSK38. QSK50满意中国国家非市政道路其次时候及北美地区Tier2. Tier 3废气排放法律法规条件。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零备件管理都有机会得到性好， 启因素正常运作及运营养护生活便利，代价低。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

最大功率时间范围 Power Range   224-310KW形式 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L样貌图片尺寸 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净产品质量 Dry Weight   940kg

224-310KW康明斯电站用热车机的优点和缺点：量小， 减少变高， 格珊氧气电加热，非常容易重启，手机端车载电子电源开关的第一选择。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

打火机应用	最常见工率(kW)Prime Power	预留工作效率kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
